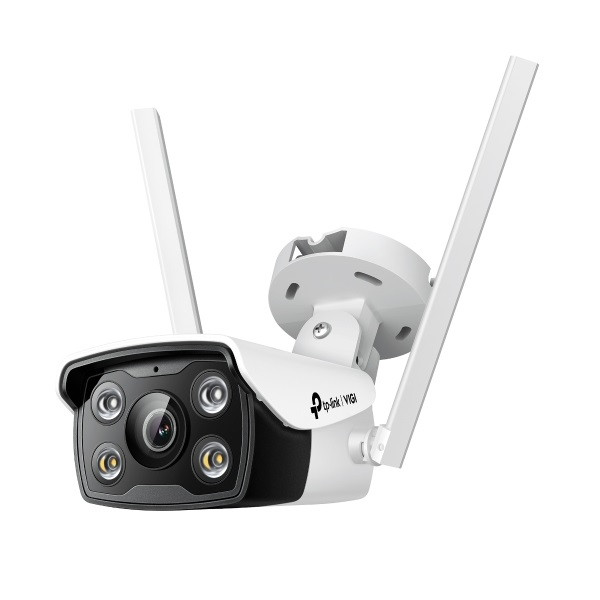

TP-Link IP csőkamera WiFi - C340-W (FullColor, 4MP, 4mm, kültéri IP66, H265+, fehér LED30m, IR30m, 12VDC)

TP-Link IP csőkamera WiFi - C340-W (FullColor, 4MP, 4mm, kültéri IP66, H265+, fehér LED30m, IR30m, 12VDC)

Bruttó ár: 40 490 Ft
db
Kosárba






























































































































































































































































































































































































































































































Kamera
Képérzékelő1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Aperture4 mm: F1.6
OptikaFixed focal lens (4 mm)
Lens MountM12
Min. szükséges megvilágítás0 lux with IR/white Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchDay/Night/Auto/Schedule-Switch
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP66
IR Working Distance30m
Illumination Distance30 m
Látószög(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
LENS
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOVHorizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens MountM12
DORI DistanceDetect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
RangePan: -90° to 90°,
Tilt: -90° to 90°
ILLUMINATOR
IR LEDQuantity: 2
Range: 30m
Wavelength: 850nm
White LEDQuantity: 2
Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2560 X 1440
Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR? 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Hang
HangkommunikációTwo-Way Audio
HangbemenetYes
HangkimenetYes
HangtömörítésYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Hálózat
SzabványTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
Wireless SecurityWPA/WPA2-PSK
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
BiztonságPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network StorageNAS (NFS, SMB/ CIFS)
Frequency2.4 GHz
Vezeték nélküli
StandardsIEEE 802.11b/g/n
WiFi ChannelsUN: 1-13
US: 1-11
Frekvencia2.4 GHz
Sugárzási teljesítményHigh
Auto Wireless ChannelN/A
Wireless StatisticsN/A
Throughput MonitoringN/A
Radio BandwidthAuto: N/A
20M: Yes
40M: Yes
Wireless Rate11Mbps(802.11b)
54Mbps(802.11g)
150Mbps(802.11n)
Wireless SecurityPWPA/WPA2-PSK
Wireless ModeAP, AP Client
Figyelmeztetési és eseménykezelési vezérlés
Smart EventArea Intrusion Detection, Line-Crossing Detection, People Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Fizikai kezelőfelület
Hálózati csatlakozás1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio InputBuilt-in Microphone
Audio OutputBuilt-in Speaker
AlarmN/A
Reset ButtonYes
PowerDC Power Port
GombReset Button
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerYes
AudioN/A
Általános
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Tömeg195g
Csomagolás tartalmaVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories
Méret (Ma x Sz x Mé)80 × 70.6 × 173.4 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.31 Kg
Gross Weight0.6 Kg
Power Consumption12V DC: Max 7W
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
AntennaQuantity: 2
Type: 2.4GHz Welded Dipole Omni-Directional Antenna
Gain: 2.0dBi
ProtectionIP66
Product Dimensions (L x W x H)80× 173 × 71 mm (excluding antennas)
CertificationsCE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Videó/Kép
Videó tömörítésMain stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Kép frissítés (frame) és felbontásMain Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
VideótovábbításMain Stream
Sub-Stream
KépbeállításMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image EnhancementBLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart EventArea Intrusion Detection, Line-Crossing Detection, Human Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region
Adatok
  • Garancia
    36 hónap
    Gyártói Cikkszám
    VIGI C340-W(4MM)
    Készleten
    Elérhető
    Gyártó
    TP-LINK
    VTSZ
    85258900
    Típus
    Cső
    Tömeg
    520 g/db
