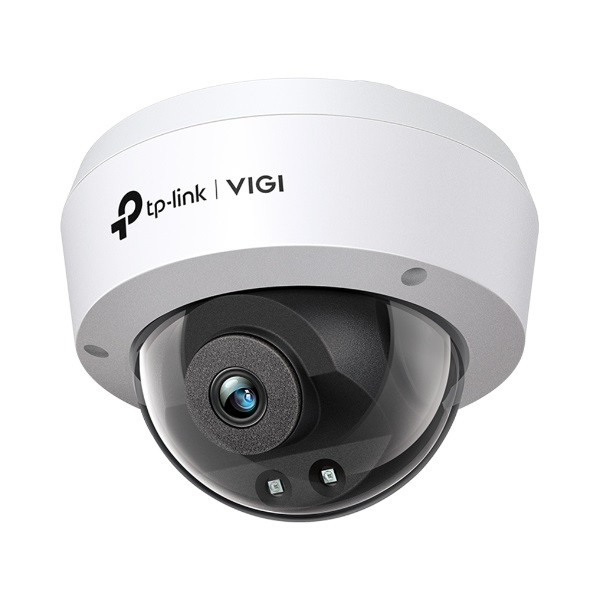

TP-Link IP dómkamera - C230I (3MP, 4mm, IK10, IP67, H265+, IR30m, 12VDC/PoE)

Name: TP-Link IP dómkamera - C230I (3MP, 4mm, IK10, IP67, H265+, IR30m, 12VDC/PoE)
Brand: TP-LINK
Price: 29590 HUF

Bruttó ár: 29 590 Ft

Kosárba

CAMERA
Image Sensor	1/2.8” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	2.8 mm: F2.2
Aperture	4 mm: F2.0
Lens	2.8 mm/ 4 mm
Lens Mount	M12
Minimum Illumination	Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP67
IR Working Distance	30m
Viewing Angle	2.8mm: 97.8°/52.9°/117.9°(H/V/D)
Viewing Angle	4mm: 82.5°/44.9°/99.3°(H/V/D)
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm/4 mm
Aperture	2.8 mm: F2.2
Aperture	4 mm: F2.0
FOV	2.8 mm:
	Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°

	4 mm:
	Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°
Lens Mount	M12
DORI Distance	2.8 mm:
	Detect: 49 m (161 ft)
	Observe: 20 m (67 ft)
	Recognize: 10 m (32 ft)
	Identify: 5 m (16 ft)

	4 mm:
	Detect: 65 m (214 ft)
	Observe: 27 m (89 ft)
	Recognize: 13 m (43 ft)
	Identify: 7 m (21 ft)
Angle Adjustment (Manual)
Range	Pan: 0° to 355°
Range	Tilt: 0° to 75°
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	Auto/Scheduled/Always on/Always off
Illuminator On/Off Control	N/A
VIDEO
Max. Resolution	2304 × 1296
Main Stream	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	Resolution: 704x576, 640x480, 352x288, 320x240

	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Video Compression	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
Video Bit Rate	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
Image Settings	White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	N/A
Audio Input	N/A
Audio Output	N/A
Audio Compression	N/A
Audio Sampling Rate	N/A
Environment Noise Filtering	N/A
Audio Bit Rate	N/A
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
Protocol	RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome® 57 and above
	Firefox® 52 and above
	Safari® 11 and above
	Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Message Push
Linkage Method	N/A
Output Notification	Message Push
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
Button	-
Video Output	-
On-board Storage	N/A
Built-in Microphone	N/A
Built-in Speaker	N/A
Audio	N/A
GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Dimensions( H X W X D )	115 × 115 × 86 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.27 Kg
Gross Weight	0.45 Kg
Power Consumption	12V DC: Max 5W
Power Consumption	PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Supply	PoE (802.3af/at, class 0)
Vandal Resistant	IK10
Protection	IP67, IK10
Product Dimensions (L x W x H)	115× 86× 115 mm
Certifications	CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Video Compression	Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
	Sub-Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution	3MP (2304 × 1296)
Video Streaming	Main Stream
Video Streaming	Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

Adatok

Garancia
36 hónap

Gyártói Cikkszám
VIGI C230I(4MM)

Készleten
Elérhető

Gyártó
TP-LINK

VTSZ
85258900

Típus
Dóm

Tömeg
520 g/db
