Termék részletek

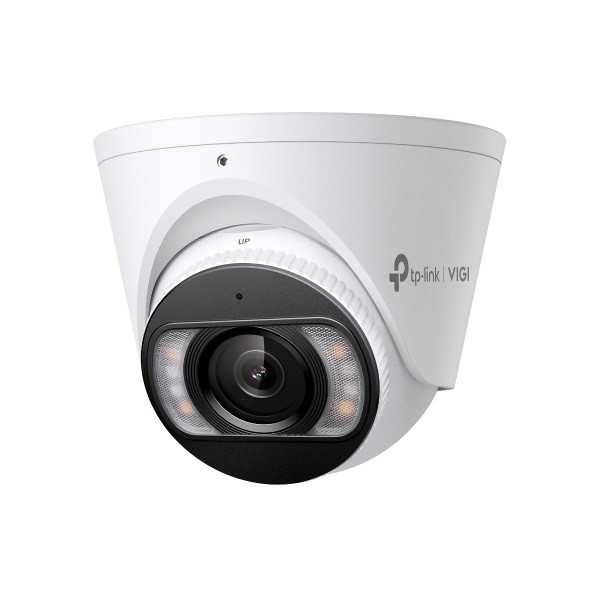

TP-Link IP turretkamera - InSight S445 (FullColor, 4MP, 4mm, IP67, H265+, LED+IR30m, 12VDC/PoE, mikr., hangsz.; fém ház)
| CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | F1.6 |
| FOV | • 2.8 mm: |
| Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° | |
| • 4 mm: | |
| Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7° | |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 2.8 mm |
| Detect: 64 m (210 ft) | |
| Observe: 27 m (89 ft) | |
| Recognize: 13 m (43 ft) | |
| Identify: 6 m (20 ft) | |
| • 4 mm | |
| Detect: 80 m (262 ft) | |
| Observe: 33 m (108 ft) | |
| Recognize: 16 m (52 ft) | |
| Identify: 8 m (26 ft) | |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | • Quantity: 4 |
| • Range: 30m | |
| • Wavelength: 850nm | |
| White LED | • Quantity: 4 |
| • Range: 30m | |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | • Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| • Resolution: | |
| 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | |
| Note: | |
| • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Sub-Stream | • Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| • Resolution: | |
| 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 | |
| • Note: | |
| If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 |
| • Sub-Stream: H.265/H.264 | |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps |
| • Sub-Stream: 64 Kbps to 512 Kbps | |
| Image | |
| Image Settings | • Mirror |
| • Brightness | |
| • Contrast | |
| • Saturation | |
| • Sharpness | |
| • Exposure | |
| • WDR | |
| • White Balance | |
| • Prevent Overexposure to Infrared Light | |
| • HLC Adjustable by Client Software | |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| Note: When People & Vehicle Analytics is enabled, only DWDR is supported. | |
| SNR | ? 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above |
| • Firefox® 52 and above | |
| • Safari® 11 and above | |
| • Microsoft® Edge 91 and above | |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | • Intrusion Detection |
| • Line-Crossing Detection | |
| • Region Entering Detection | |
| • Region Exiting Detection | |
| • Object Abandoned Detection | |
| • Object Removal Detection | |
| • Loitering Detection | |
| • People Detection | |
| • Vehicle Detection | |
| • Abnormal Sound Detection | |
| • Scene Change Detection | |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) |
| • Video Tampering Detection | |
| • Exception ( Illegal Login) | |
| Alarm Linkage | • Memory Card Video Recording |
| • Message Push | |
| • Audible Warning | |
| • White Light Flashing | |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Deep Learning Function | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§ |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | • VIGI Network Camera |
| • Quick Start Guide | |
| • Waterproof Cable Attachments | |
| • Mounting Accessories | |
| Material | Metal |
| Net Weight | 0.48 Kg |
| Power Supply | • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug |
| • PoE: 802.3af/at, class 0, Max. 12 W | |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
-
Garancia 48 hónapGyártói Cikkszám INSIGHT S445(4MM)Készleten ElérhetőGyártó TP-LINKVTSZ 85258900Típus TurretTömeg 520 g/db
